 ENGINE
R.P.M.INDICATOR |
| |
MULTIFUNCTIONAL

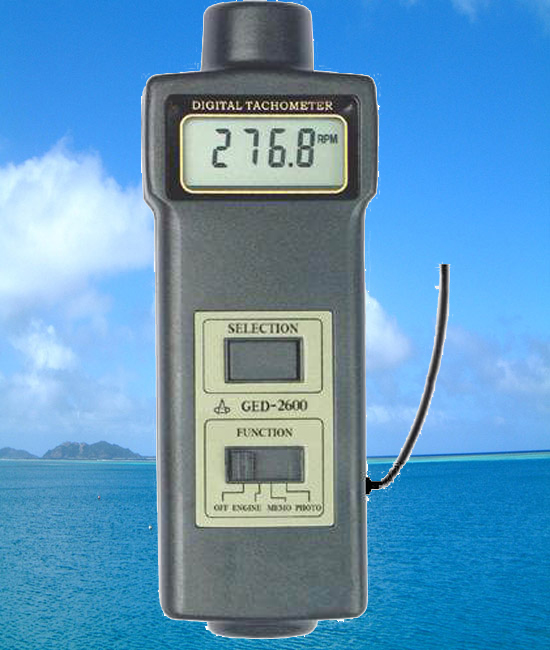

ENGINE TACHOMETER GED-2600 |
| |
|
| |
| Product synopsis |
| Model: GED2600 |
| Application: 2-CIRCLE 1,2,3,4-cylinder |
| 4-CIRCLE 1,2,3,4,5,6,8- cylinder |
| Measurement range: engine 100-20000r/min |
| Laser 2.5-99999r/min |
| Detection method: engine electromagnetic induction |
| Laser reflective |
| Measuring range: 30-600mm |
| Resolution:0.1/1 |
| Operating conditions: 0-+45℃(32℉-104℉),≤90%RH |
| Accuracy: ±(0.05%n+1d) |
| Memory: MAX/MIN/LAST value |
| Power supply: 4x1.5V AA (UM-3) battery |
| Dimensions: 220x68x38mm |
| Weight (not including probe): 164g |
| |
|
| |
