 THICKNESS METER |
|

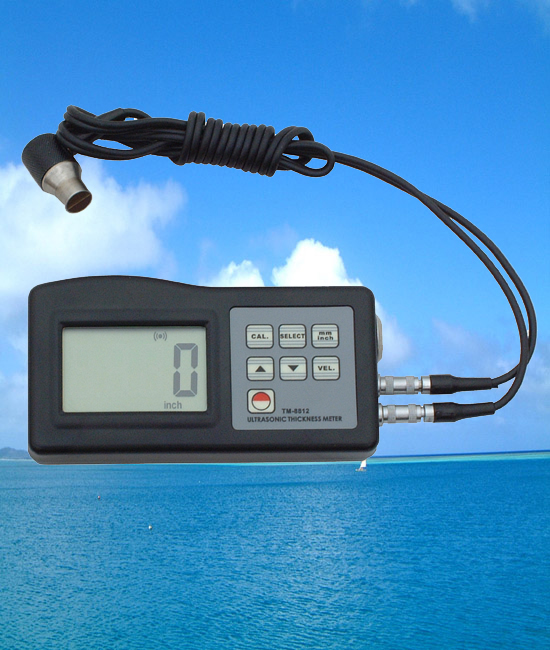

ULTRASONIC THICKNESS GAUGE TG8812 |
|
|
|
| Product synopsis |
| TG-8812 |
| Measuring range Metric:1.2225mm |
| Imperial:0.5-9inch |
| Materials measured: any hard materials, including steel, cast iron,
aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, |
| gray cast iron, nodular cast |
| iron and other materials |
| Sound velocity: 500-9000m |
| Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the
transducer |
| Calibration block: included |
| Resolution: 0.1mm |
| Accuracy: ±(0.5%n+0.1) |
| Power supply: 4x1.5V AA(UM-3)battery |
| Battery indicator: low battery indicator |
| Operating conditions:0-+45℃(32℉-104℉) ≤90%RH |
| Dimensions: 120x62x30mm |
| Weight: 164g(not including battery) |
|
|
